| MOQ: | 1 Set |
| 価格: | 4000 USD |
| 標準パッケージ: | Plywood case |
| 配達期間: | 15-20 days |
| 支払方法: | T/T |
| 供給能力: | 800 Sets per month |

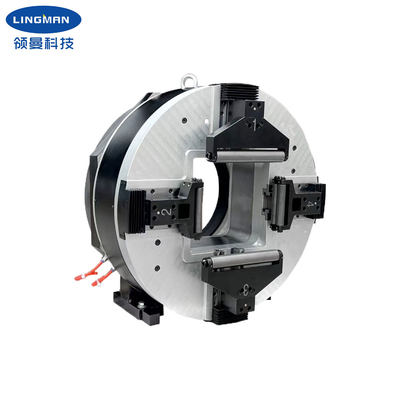

This product is specially designed for laser cutting units. It serves as an independent rotating spindle with a chuck in the middle that tightens and rotates a work-piece simultaneously.
Quick clamping and unclamping are facilitated by the side rotating air intake. The air source can be disconnected during operation.
Once the product base is secured, the appropriate motor is added and linked to the gear. Subsequently, the compressed air source (0.1-0.9Mpa) is connected to enable the clamping and rotation of the work-piece.
| Made In | China |
| Limit Speed | 150r/min |
| Chuck Jaw Type | 4-Jaw |
| Whole Weight | 230kg |
| Application | Laser Pipe Cutting Machine |
| Allowable Pressure | 0.3-0.9MPa |
| Maximum Clamping Force | 3.6KN |
| Clamping Method | Pneumatic |
| Jaw Stroke | 230mm |
| Centering Accuracy | 0.05mm |
Lingman F245DF Laser Rotary Chuck is a high-quality chuck designed specifically for laser pipe cutting machines. With its pneumatic clamping method and 4-jaw chuck jaw type, this product is perfect for securely holding pipes during the cutting process.
Manufactured in Changzhou, China, the Lingman F245DF Laser Rotary Chuck offers a reliable and efficient solution for laser cutting applications. Its allowable pressure range of 0.3-0.9MPa ensures a strong grip on pipes of various sizes, making it suitable for a wide range of projects.
Whether you are working on industrial pipe cutting or fabrication projects, the Lingman F245DF Laser Rotary Chuck is the ideal choice. Its durable construction and precise clamping mechanism make it a valuable tool for enhancing productivity and accuracy in laser cutting operations.
When it comes to product application occasions and scenarios, the Lingman F245DF Laser Rotary Chuck shines in industries such as metal fabrication, construction, automotive, and more. Its versatility and reliability make it a valuable asset for businesses looking to streamline their laser cutting processes.
With a minimum order quantity of 1 set and a price of 4000 USD, the Lingman F245DF Laser Rotary Chuck offers excellent value for money. The packaging details include a sturdy plywood case for safe transportation, and the delivery time is estimated at 15-20 days. Payment terms are flexible with T/T options available.
Thanks to a supply ability of 800 sets per month, customers can rely on the Lingman F245DF Laser Rotary Chuck to meet their ongoing needs for laser cutting applications. Whether you are a small workshop or a large manufacturing facility, this product delivers consistent performance and durability.
Product Name: Laser Rotary Chuck
Description: The Laser Rotary Chuck is a precision tool designed for holding cylindrical objects securely during laser engraving or cutting.
Package Contents: - 1 Laser Rotary Chuck - User Manual
Shipping Information: This product will be carefully packaged to ensure safe delivery. Shipping will be handled by our trusted courier partners to ensure timely arrival.
Q: What is the brand name of this Laser Rotary Chuck?
A: The brand name of this Laser Rotary Chuck is Lingman.
Q: What is the model number of this Laser Rotary Chuck?
A: The model number of this Laser Rotary Chuck is F245DF.
Q: Where is this Laser Rotary Chuck manufactured?
A: This Laser Rotary Chuck is manufactured in Changzhou.
Q: What is the minimum order quantity for this Laser Rotary Chuck?
A: The minimum order quantity for this Laser Rotary Chuck is 1 Set.
Q: What is the price of this Laser Rotary Chuck?
A: The price of this Laser Rotary Chuck is 4000 USD.
